Safe and secure power management
Peace of mind
Easy Installation
Our PDU-6SS single point power distribution and voltage monitoring system allows you to streamline your wiring while protecting your vehicle battery.

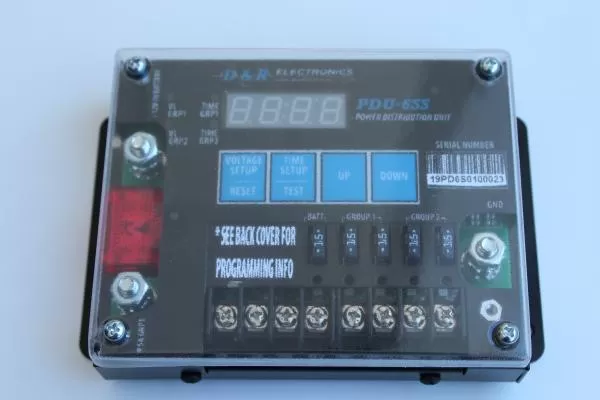

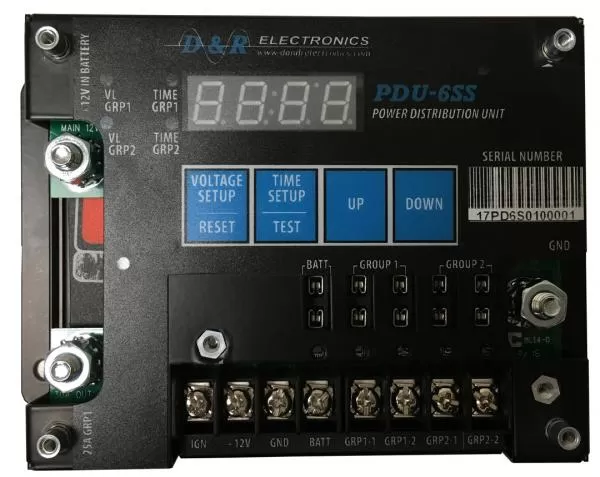

The PDU-6SS is a single point power distribution system
In addition to monitoring the incoming battery voltage via an LED display, the system monitors the voltage level of the connected accessories (up to 6).
The PDU-6SS divides the accessories in to three groups, battery, group 1 and group 2.
Group 1 and two are monitored individually and can be programed separately with different minimum voltages that will trigger a low voltage group shut down.
If group one shuts down, group two will continue to function and be monitored. If group two goes below its programed threshold, group two will then shut down. The system will save enough battery energy so the vehicle can be restarted.
Any faulty fuse or connection will be visible on the LED display.

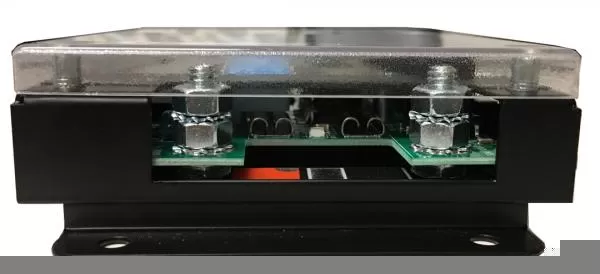

The PDU-6SS is all metal solid state construction. It comes with a Plexiglas cover to reduce dust and dirt
Safe and secure power management
Peace of mind
Easy Installation
Our PDU-6SS single point power distribution and voltage monitoring system allows you to streamline your wiring while protecting your vehicle battery.
The PDU-6SS is a single point power distribution system
In addition to monitoring the incoming battery voltage via an LED display, the system monitors the voltage level of the connected accessories (up to 6).
The PDU-6SS divides the accessories in to three groups, battery, group 1 and group 2.
Group 1 and two are monitored individually and can be programed separately with different minimum voltages that will trigger a low voltage group shut down.
If group one shuts down, group two will continue to function and be monitored. If group two goes below its programed threshold, group two will then shut down. The system will save enough battery energy so the vehicle can be restarted.
Any faulty fuse or connection will be visible on the LED display.

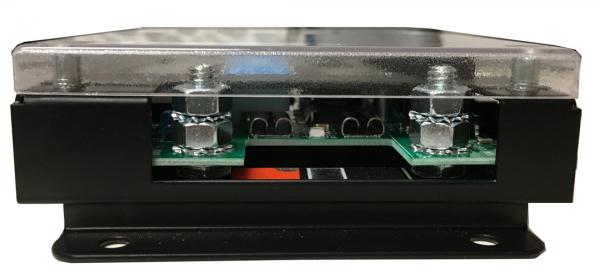

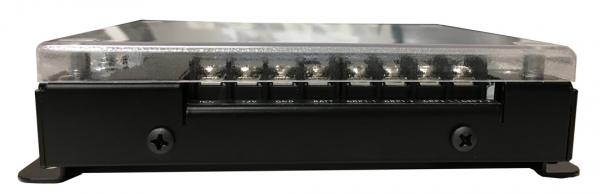

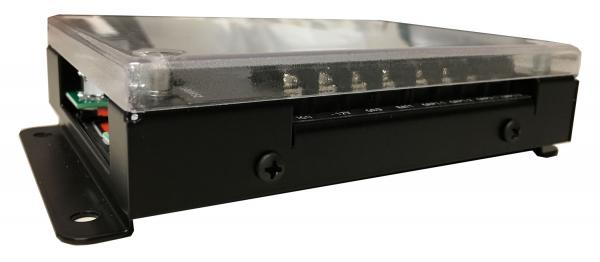

The PDU-6SS is all metal solid state construction. It comes with a Plexiglas cover to reduce dust and dirt
| Voltage range | 11-18VDC |
| Maximum Current Load | 10A per output, fused at 15A25A for heavy duty output, fused at 40A40A total maximum current per PDU |
| Stand-by Current | 15mA |
| Operating Current | 600mA |
| Programmable timer setup | 1 minute - 99.59 hours |
| Fuse type | Mini Fuses for regular outputs Maxi fuse for heavy duty output |
| Operating Temperature | -40C to +65C (-40F to +149F) |
| Dimensions | L-6.0 |
| Weight | 1.15lbs |
| Zero voltage consumption in shut down mode | |
| Test mode (20 seconds) | |
| Reset mode |
