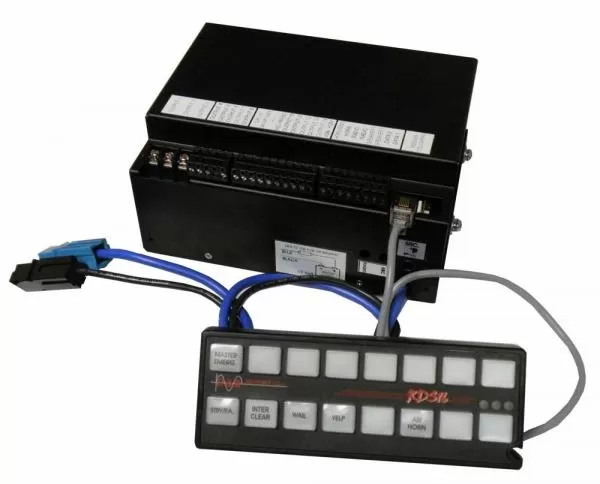

RDS16S

Description:

  • Light and siren control with full feature siren
  • 14 controlled outputs:  3@20Amp and 11@10Amp
  • Radio re-broadcasting
  • Park Kill
  • All control outputs are solid state relays
  • The touchpad includes 16 illuminated push button switches
  • Traffic control indicator
  • Operates one or two 100W speakers
  • Meets SAE J1849


Gallery

RDS16S

Operating Current 10Amps
Frequency Range 700 to 1640Hz (nominal)
Input Voltage 11 to 16 Volts DC
Operating Temperature Ranges -30oC to +65oC
Standby Current; 50mA +/- 10%
Cycle Rate Wail - 17 cycles/min Yelp - 230 cycles/min Stinger - 1000 cycles/min
Nominal Output 52V p-p (11Ohm load)
Audio Frequency Response 100-4000Hz +/- 3dB
Audio Distortion 10% or less
Audio Power 32 watt
Input Impedance 600Ohm
