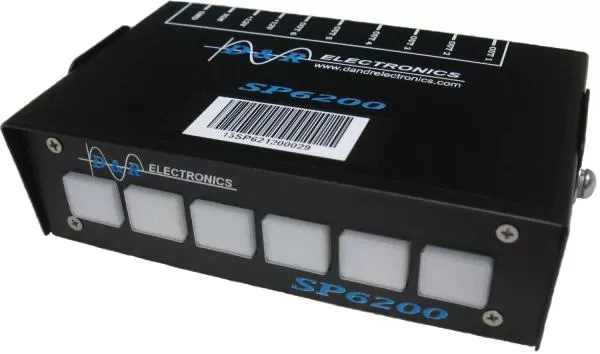

SP6200

Description:

6 available switches with backlight, microprocessor controlled
6 available OUTPUTS

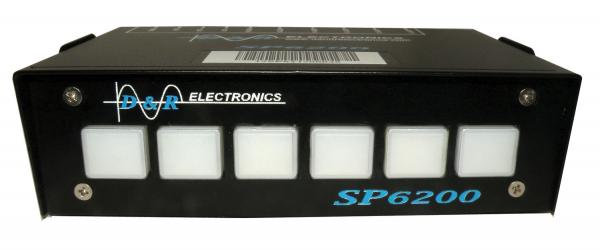

Individual interchangeable labels for each switch
SW1 programmable as MASTER switch (ON/OFF switch only if not used as MASTER)
SW2 to SW6 programmable as ON/OFF (factory default), MOMENTARY or TIMER (9 sec).

Gallery

SP6200

6 available switches with backlight, microprocessor controlled
6 available OUTPUTS
Individual interchangeable labels for each switch
SW1 programmable as MASTER switch (ON/OFF switch only if not used as MASTER)
SW2 to SW6 programmable as ON/OFF (factory default), MOMENTARY or TIMER (9 sec).

Input Voltage	11 to 16 VDC
Operating Temperature Range	-30°C to +65°C
Maximum Current per Output Terminal	15Amp
Maximum Combined Current per System	40Amp
